SVG LinearGradientElement.y2属性用法及代码示例

SVG LinearGradientElement.y2属性返回与给定LinearGradient元素的属性相对应的SVGAnimatedLength对象

用法:

LinearGradientElement.y2

返回值：该属性返回可以使用的SVGAnimatedLength对象获取y2的LinearGradient元素。

范例1：

HTML

<!DOCTYPE html>
<html>

<body>
    <svg viewBox="0 0 200 200"
        xmlns="http://www.w3.org/2000/svg"
        xmlns:xlink="http://www.w3.org/1999/xlink">

        <defs>
            <linearGradient id="gfg"
                gradientTransform="rotate(70)"
                x1="0%" x2="20%" y1="0%" y2="20%">

                <stop offset="10%" stop-color="blue" />
                <stop offset="90%" stop-color="green" />
            </linearGradient>
        </defs>

        <circle cx="20" cy="20" r="20" fill="url('#gfg')" />

        <script>
            var a = document.getElementById("gfg");
            console.log(a.y2);
        </script>
    </svg>
</body>

</html>

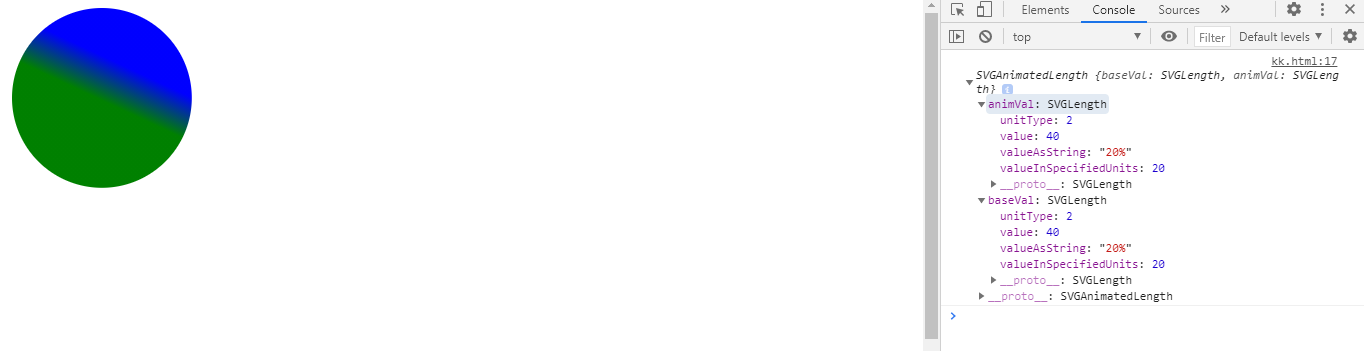

输出：

范例2：

HTML

<!DOCTYPE html>
<html>

<body>
    <svg viewBox="0 0 500 500"
        xmlns="http://www.w3.org/2000/svg"
        xmlns:xlink="http://www.w3.org/1999/xlink">

        <defs>
            <linearGradient id="gfg"
                gradientTransform="rotate(70)"
                x1="0%" x2="20%" y1="0%" y2="20%">

                <stop offset="10%" stop-color="blue" />
                <stop offset="90%" stop-color="green" />
            </linearGradient>
        </defs>

        <ellipse cx="100" cy="70" rx="80"
            ry="50" fill="url('#gfg')" />

        <script>
            var a = document.getElementById("gfg");
            console.log(a.y2);
        </script>
    </svg>
</body>

</html>

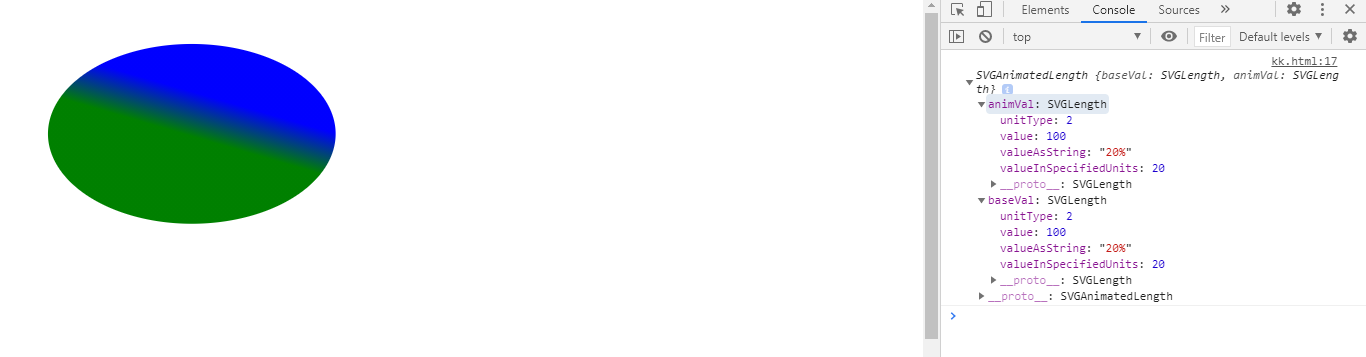

输出：

范例3：

HTML

<!DOCTYPE html>
<html>

<body>
    <svg viewBox="0 0 500 500"
        xmlns="http://www.w3.org/2000/svg"
        xmlns:xlink="http://www.w3.org/1999/xlink">

        <defs>
            <linearGradient id="gfg"
                gradientTransform="rotate(70)"
                x1="0%" x2="20%" y1="0%" y2="20%">

                <stop offset="10%" stop-color="blue" />
                <stop offset="90%" stop-color="green" />
            </linearGradient>
        </defs>

        <rect height="80" width="80" x="30"
            y="30" fill="url('#gfg')" />

        <script>
            var a = document.getElementById("gfg");
            console.log(a.y2);
        </script>
    </svg>
</body>

</html>

输出：
