SVG stitchTiles属性用法及代码示例

stitchTiles属性指示边界处的Perlin噪波图块的行为。只有<feTurbulence>原语正在使用此属性。 feTurbulence是SVG的重要过滤器原语之一，它有助于模拟自然纹理，例如云或烟雾等。

用法:

stitchTiles = stitch | noStitch

属性值：StitchTiles属性接受上面提到和下面描述的值。

stitch:它指示用户将自动调整基本频率的x和y值。
noStitch:它表明未尝试在包含湍流函数的图块的边界处实现平滑过渡。

范例1：以下示例说明了itchleTiles属性的用法。 SVG feTurbulence滤镜基元用于创建自己的失真效果。此处，noStitch选项用于itchleTiles属性。

HTML

<!DOCTYPE html>
<html>

<body>
    <h2 style="color:green; font-size:40px;">
        GeeksforGeeks
    </h2>

    <p style="margin-left:30px;">
        <b>SVG filter effects</b>
    </p>

    <!--SVG container for graphical images -->
    <svg viewBox="0 0 620 400"
        xmlns="http://www.w3.org/2000/svg">

        <!--Adding filter element for
            special effects -->
        <filter id="filterID1" x="0" y="0"
            width="100%" height="100%">

            <!-- feTurbulence to fill the
                region with no smoothness-->
            <feTurbulence baseFrequency="0.035"
                numOctaves="8" seed="5"
                stitchTiles="noStitch" />
            <!-- "noStitch" option is given above
                for NO smooth noise-->
        </filter>

        <!--Variations of rectangle is used -->
        <rect x="10" y="0" width="50" height="50"
            style="filter:url(#filterID1);" />

        <rect x="10" y="0" width="50" height="50"
            style="filter:url(#filterID1);
            transform:translate(50px, 0);" />

        <!--translate is used for moving to new
            location -->
        <rect x="10" y="0" width="50" height="50"
            style="filter:url(#filterID1);
            transform:translate(0, 50px);" />

        <rect x="10" y="0" width="50" height="50"
            style="filter:url(#filterID1);
            transform:translate(50px, 50px);" />
    </svg>
</body>

</html>

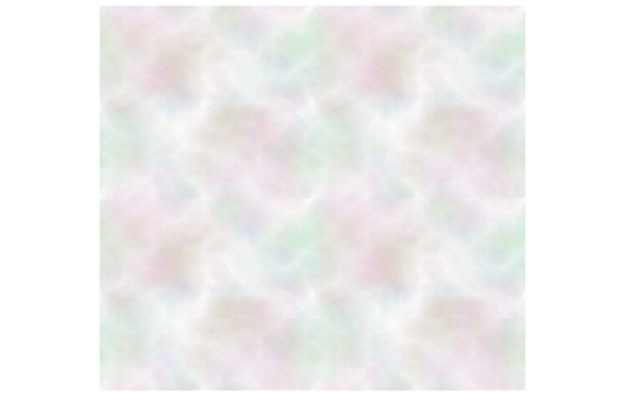

输出：

范例2：

HTML

<!DOCTYPE html>
<html>

<body>
    <h2 style="color:green; font-size:30px;
        margin-left:10px;">
        GeeksforGeeks
    </h2>

    <p style="margin-left:30px;">
        <b>SVG filter effects</b>
    </p>

    <svg viewBox="200 0 720 500"
        xmlns="http://www.w3.org/2000/svg">

        <!-- stitchTiles attribute have values
            as "stitch" or "noStitch"-->
        <filter id="filterID" x="0" y="0"
            width="100%" height="100%">

            <!-- feTurbulence fills the region
                with some content with perlin
                turbulence function-->
            <feTurbulence baseFrequency="0.025"
                numOctaves="8" seed="5"
                stitchTiles="stitch" />
            <!-- "stitch" option is given above
                for smooth noise -->
        </filter>

        <!-- Variations of rectangle is used -->
        <rect width="50" height="50"
            style="filter:url(#filterID);
            transform:translate(220px, 0);" />

        <!-- Translate is used for moving
            to new location -->
        <rect width="50" height="50"
            style="filter:url(#filterID);
            transform:translate(270px, 0);" />

        <rect width="50" height="50"
            style="filter:url(#filterID);
            transform:translate(220px, 50px);" />

        <rect width="50" height="50"
            style="filter:url(#filterID);
            transform:translate(270px, 50px);" />
    </svg>
</body>

</html>

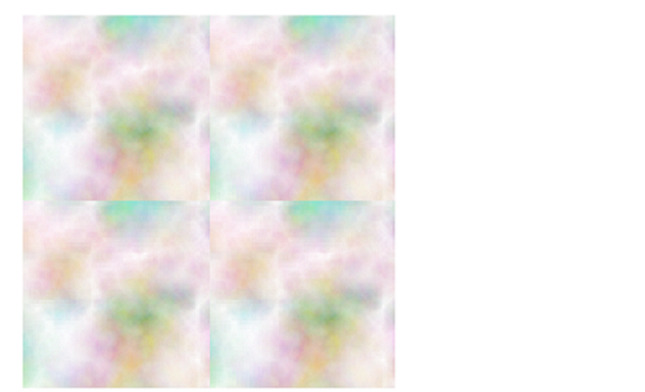

输出：
