d3.js continuous.domain()用法及代码示例

Continuous.domain()函数用于将秤的域设置为指定的数字数组。此处指定的数组中包含两个或两个以上元素。

用法:

continuous.domain([domain]);

参数：该函数接受上面提到的和下面描述的单个参数。

[域]：这是一个采用两个或多个指定域的值的数组。

返回值：此函数不返回任何内容。

以下示例说明了JavaScript中的D3.js Continuous.domain()函数：

范例1：

HTML

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8" />
    <meta name="viewport"
        path1tent="width=device-width,
        initial-scale=1.0"/>
    <script src=
"https://d3js.org/d3.v4.min.js">
    </script>
    <script src=
"https://d3js.org/d3-color.v1.min.js">
    </script>
    <script src=
"https://d3js.org/d3-interpolate.v1.min.js">
    </script>
    <script src=
"https://d3js.org/d3-scale-chromatic.v1.min.js">
    </script>
</head>
<body style="text-align:center;">
    <h2 style="color:green;">
        Geeksforgeeks
    </h2>

    <p>D3.js continuous.domain() Function </p>

    <script>
    var object = d3.scaleLinear()
                // Domain ranges 0 to 1
                    .domain([0, 1])
                    .range(["red", "green"]);
    document.write("<br/>")
    document.write("<h4>"+object(0)+"</h4>");
    document.write("<h4>"+object(1)+"</h4>");
    </script>
</body>
</html>

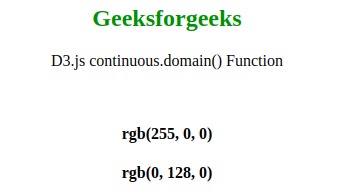

输出：

范例2：

HTML

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="UTF-8" />
        <meta name="viewport"
              content="width=device-width,
                       initial-scale=1.0"/>
    </head>
    <style>
        div {
            padding:6px;
            text-align:center;
            vertical-align:middle;
            display:flex;
            justify-content:center;
            color:White;
            width:fit-content;
            margin-top:2px;
            height:20px;
        }
    </style>
    <body>
        <h2 style="color:green;">
            GeeksforGeeks
        </h2>
        <p>D3.js continuous.domain()</p>
        <div class="box1">
            <span>continuous(0.5)</span>
        </div>
        <div class="box2">
            <span>continuous(0.4)</span>
        </div>
        <div class="box3">
            <span>continuous(0.3)</span>
        </div>
        <div class="box4">
            <span>continuous(0.2)</span>
        </div>
        <div class="box5">
            <span>continuous(0.1)</span>
        </div>
        <!--Fetching from CDN of D3.js -->
        <script src=
"https://d3js.org/d3.v4.min.js">
         </script>
        <script src=
"https://d3js.org/d3-color.v1.min.js">
         </script>
        <script src=
"https://d3js.org/d3-interpolate.v1.min.js">
         </script>
        <script src=
"https://d3js.org/d3-scale-chromatic.v1.min.js">
         </script>
        <script>
            var continuous = d3
                .scaleLinear()
                // Domain ranges 0 to 1
                .domain([-2, -1, 0, 1, 2])
                .range(["Blue", "green", "orange",
                        "Red", "black"]);
            let color1 = continuous(-2);
            let color2 = continuous(-1.5);
            let color3 = continuous(0);
            let color4 = continuous(1.5);
            let color5 = continuous(2);

            // Selecting Div using query selector
            let box1 = document.querySelector(".box1");
            let box2 = document.querySelector(".box2");
            let box3 = document.querySelector(".box3");
            let box4 = document.querySelector(".box4");
            let box5 = document.querySelector(".box5");

            // Setting style and BG color of
            // the particular DIVs
            box1.style.backgroundColor = color1;
            box2.style.backgroundColor = color2;
            box3.style.backgroundColor = color3;
            box4.style.backgroundColor = color4;
            box5.style.backgroundColor = color5;
        </script>
    </body>
</html>

输出：

相关用法

注：本文由纯净天空筛选整理自tarun007大神的英文原创作品 D3.js continuous.domain() Function。非经特殊声明，原始代码版权归原作者所有，本译文未经允许或授权，请勿转载或复制。
