d3.js geoOrthographic()用法及代码示例

Javascript D3.Js geoOrthographic() 函数为我们提供了方位角正投影。当我们希望将地球视为 3D 对象及其半球时，它很有用。

用法:

d3.geoOrthographic()

参数：此方法不接受任何参数。

返回值：此方法从给定的 JSON 数据创建并返回 geoOrthographic() 投影。

让我们看一个例子来了解我们如何使用 geoOrthographic() 函数。

示例 1：无旋转的正交投影

HTML


<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width,
                initial-scale=1.0" />

    <script src="https://d3js.org/d3.v4.js"></script>

    <script src=
"https://d3js.org/d3-geo-projection.v2.min.js">
    </script>
</head>

<body>
    <div>
        <svg width="1200" height="850">
        </svg>
    </div>

    <script>
        var svg = d3.select("svg"),
            width = +svg.attr("width"),
            height = +svg.attr("height");

        // The orthographic Earth projection
        // Center(0,0) and no rotation
        var projection = d3.geoOrthographic()
            .center([0, 0])
            .scale(250)
            .clipAngle(90 )
            .translate([width / 2, height / 3])
            .rotate([0,0])

       // Loading data from json
       d3.json("https://raw.githubusercontent.com/"
           +"epistler999/GeoLocation/master/world.json",
           function (data) {

                // Draw the map
                svg.append("g")
                    .selectAll("path")
                    .data(data.features)
                    .enter().append("path")
                    .attr("fill", "green")
                    .attr("d", d3.geoPath()
                        .projection(projection)
                    )
                    .style("stroke", "#ffff")
            })
    </script>
</body>

</html>

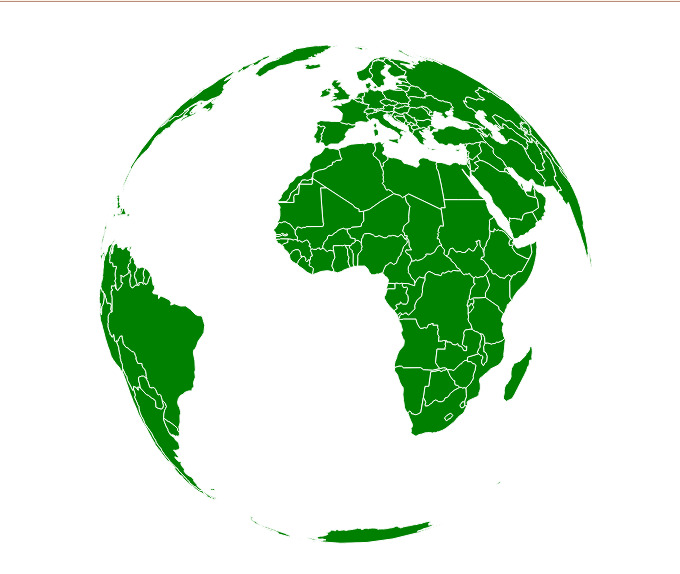

输出：

示例 2：具有旋转的正交投影

HTML


<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content=
        "width=device-width,initial-scale=1.0" />
    <script src="https://d3js.org/d3.v4.js"></script>
    <script src=
"https://d3js.org/d3-geo-projection.v2.min.js">
    </script>
</head>

<body>
    <div>
        <svg width="1200" height="850">
        </svg>
    </div>

    <script>
        var svg = d3.select("svg"),
            width = +svg.attr("width"),
            height = +svg.attr("height");

        const config = {
            speed:0.010,
            verticalTilted:-10,
            horizontalTilted:0
        }

        // The orthographic Earth projection
        // Center(0,0) and no rotation
        var projection = d3.geoOrthographic()
            .center([0, 0])
            .scale(250)
            .clipAngle(90 )
            .translate([width / 2, height / 3])
            .rotate([0,0])

        const path = d3.geoPath().projection(projection);

        // Calling rotate() function for rotation of globe
        Rotate();

        // Loading data from json
        d3.json("https://raw.githubusercontent.com/"
            +"epistler999/GeoLocation/master/world.json",
            function (data) {

                // Draw the map
                svg.append("g")
                    .selectAll("path")
                    .data(data.features)
                    .enter().append("path")
                    .attr("fill", "grey")
                    .attr("d", d3.geoPath()
                        .projection(projection)
                    )
                    .style("stroke", "#ffff")
        })

        // Function to rotate() projection of globe.
        function Rotate() {
            d3.timer(function (elapsed) {
                projection.rotate(
                    [config.speed*elapsed-120,
                    config.verticalTilted,
                    config.horizontalTilted]);
                    svg.selectAll("path").attr("d", path);
                });
            }
    </script>
</body>

</html>

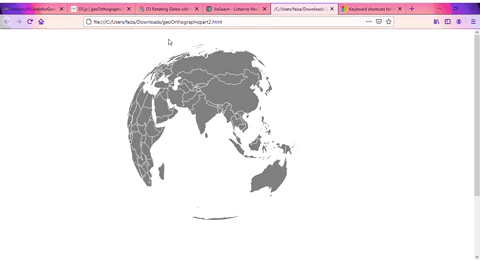

输出：
