d3.js geoMtFlatPolarParabolic()用法及代码示例

d3.geoMtFlatPolarParabolic()函数给出McBryde-Thomas flat-polar抛物线假圆柱equal-area投影。

用法:

d3.geoMtFlatPolarParabolic()

参数:此方法不接受任何参数。

返回值:此方法根据给定的JSON数据创建MtFlatPolarParabolic()投影。

范例1:以下示例创建中心为(0,0)且不旋转的MtFlatPolarParabolic()世界投影。



HTML

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width,
                initial-scale=1.0" />
     <script src="https://d3js.org/d3.v4.js">
     </script>
    <script src=
        "https://d3js.org/d3-geo-projection.v2.min.js">
    </script>
</head>

<body>
    <div style="width:700px; height:600px;">
        <svg width="700" height="550">
        </svg>
    </div>

    <script>
        var svg = d3.select("svg"),
            width = +svg.attr("width"),
            height = +svg.attr("height");

        // MtFlatPolarParabolic projection
        // Center(0, 0) and no rotation
        var gfg = d3.geoMtFlatPolarParabolic()
            .scale(width / 1.5 / Math.PI)
            .rotate([0, 0])
            .center([0, 0])
            .translate([width / 2, height / 3])

        // Loading the json data
        // Used json file stored at
        // https://raw.githubusercontent.com/epistler999/
        // GeoLocation/master/world.json
        d3.json("https://raw.githubusercontent.com/"
            +"epistler999/GeoLocation/master/world.json",
            function (data) {
                // Draw the map
                svg.append("g")
                    .selectAll("path")
                    .data(data.features)
                    .enter().append("path")
                    .attr("fill", "black")
                    .attr("d", d3.geoPath()
                        .projection(gfg)
                    )
                   .style("stroke", "#ffff")
            })
    </script>
</body>
</html>

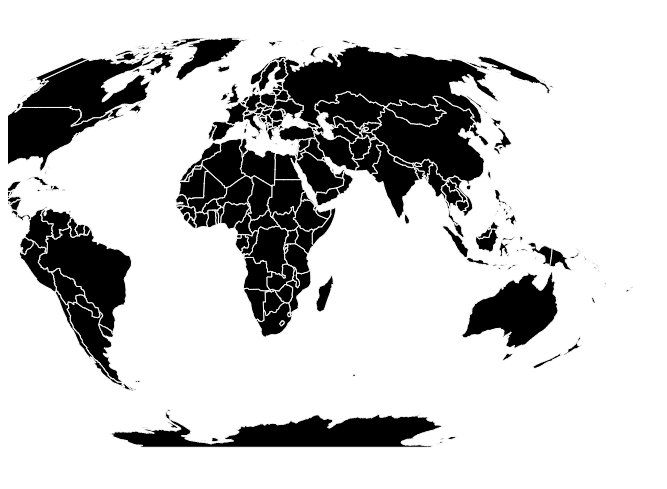

输出:

范例2:在以下示例中,我们将创建中心为(30,0)并相对于Y轴旋转30度的anti-clockwise的世界MtFlatPolarParabolic()投影。

HTML

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width,
                initial-scale=1.0" />
    <script src="https://d3js.org/d3.v4.js"></script>
    <script src=
      "https://d3js.org/d3-geo-projection.v2.min.js">
    </script>
</head>

<body>
    <div style="width:700px; height:600px;">
        <svg width="700" height="550">
        </svg>
    </div>

    <script>
        var svg = d3.select("svg"),
            width = +svg.attr("width"),
            height = +svg.attr("height");

        // Mt Flat Polar Parabolic() projection
        // Center(30, 0) and 30 degree rotation
        var gfg = d3.geoMtFlatPolarParabolic()
            .scale(width / 1.5 / Math.PI)
            .rotate([-30, 0])
            .center([30, 0])
            .translate([width / 2, height / 2])

        // Loading the json data
        // Used json file stored at
        // https://raw.githubusercontent.com/epistler999/
        // GeoLocation/master/world.json
        d3.json("https://raw.githubusercontent.com/"
            +"epistler999/GeoLocation/master/world.json",
            function (data) {
                // Draw the map
                svg.append("g")
                    .selectAll("path")
                    .data(data.features)
                    .enter().append("path")
                    .attr("fill", "black")
                    .attr("d", d3.geoPath()
                        .projection(gfg)
                    )
                   .style("stroke", "#ffff")
            })
    </script>
</body>

</html>

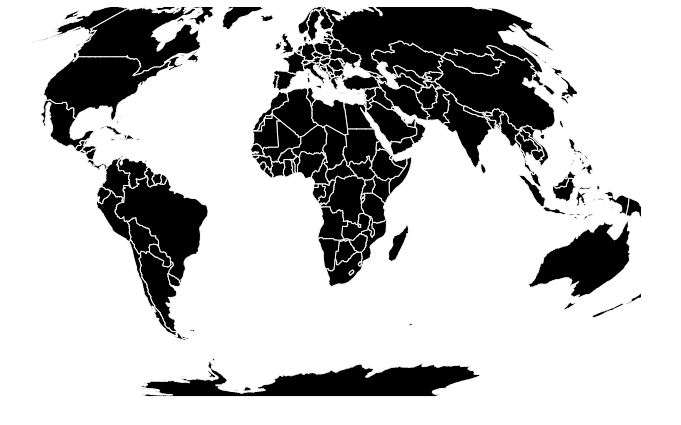

输出:
