d3.js schemePuBu[]用法及代码示例

D3.js 中的 d3.schemePuBu[] 函数用于从 “PuBu” 顺序配色方案中返回特定颜色，该颜色作为十六进制字符串返回。

用法:

d3.schemePuBu[k]

参数：该函数接受如上所述和以下描述的单个参数。

  • k:“k”是3到9之间的一个数字。

返回值它返回一个十六进制字符串。

下面给出的是上面给出的函数的一些示例。



范例1：

HTML


<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8" />
    <meta name="viewport"
        path1tent="width=device-width,
        initial-scale=1.0"/>

    <title>D3.js schemePuBu[] Function</title>
    <script src=
"https://d3js.org/d3.v4.min.js">
    </script>
    <script src=
"https://d3js.org/d3-color.v1.min.js">
    </script>
    <script src=
"https://d3js.org/d3-interpolate.v1.min.js">
    </script>
    <script src=
"https://d3js.org/d3-scale-chromatic.v1.min.js">
    </script>
</head>
<body>
    <center>
    <h1 style="color:green;">GeeksForGeeks</h1>

    <h3>D3.js schemePuBu[] Function</h3>

    <script>
        document.write(d3.schemePuBu[8][0]+"<br>");
        document.write(d3.schemePuBu[8][1]+"<br>");
        document.write(d3.schemePuBu[8][2]+"<br>");
        document.write(d3.schemePuBu[8][3]+"<br>");
        document.write(d3.schemePuBu[8][4]+"<br>");
        document.write(d3.schemePuBu[8][5]+"<br>");
        document.write(d3.schemePuBu[8][6]+"<br>");
        document.write(d3.schemePuBu[8][7]+"<br>");
    </script>
    </center>
</body>
</html>

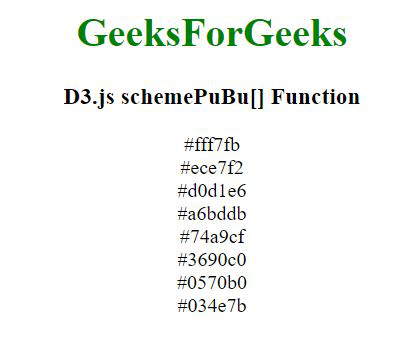

输出：

范例2：

HTML


<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8" />
    <meta name="viewport"
        path1tent="width=device-width,
        initial-scale=1.0"/>

    <title>D3.js schemePuBu() Function</title>
    <script src=
"https://d3js.org/d3.v4.min.js">
    </script>
    <script src=
"https://d3js.org/d3-color.v1.min.js">
    </script>
    <script src=
"https://d3js.org/d3-interpolate.v1.min.js">
    </script>
    <script src=
"https://d3js.org/d3-scale-chromatic.v1.min.js">
    </script>
</head>
<style>
    div {
        padding:3px;
        width:fit-content;
        height:20px;
        width:250px;
    }
</style>
<body>
    <center>
    <h1 style="color:green;">GeeksForGeeks</h1>

    <h3>D3.js schemePuBu() Function</h3>

    <div class="b1">
        <span>
            D3.schemePuBu[8][0]
        </span>
    </div>
    <div class="b2">
        <span>
            D3.schemePuBu[8][1]
        </span>
    </div>
    <div class="b3">
        <span>
            D3.schemePuBu[8][2]
        </span>
    </div>
    <div class="b4">
        <span>
            D3.schemePuBu[8][3]
        </span>
    </div>
    <div class="b5">
        <span>
            D3.schemePuBu[8][4]
        </span>
    </div>
    <div class="b6">
        <span>
            D3.schemePuBu[8][5]
        </span>
    </div>
    <div class="b7">
        <span>
            D3.schemePuBu[8][6]
        </span>
    </div>
    <div class="b8">
        <span>
            D3.schemePuBu[8][7]
        </span>
    </div>
    <script>
        // Array of colors is given
        let color1 = d3.schemePuBu[8][0];
        let color2 = d3.schemePuBu[8][1];
        let color3 = d3.schemePuBu[8][2];
        let color4 = d3.schemePuBu[8][3];
        let color5 = d3.schemePuBu[8][4];
        let color6 = d3.schemePuBu[8][5];
        let color7 = d3.schemePuBu[8][6];
        let color8 = d3.schemePuBu[8][7];

        let b1 = document.querySelector(".b1");
        let b2 = document.querySelector(".b2");
        let b3 = document.querySelector(".b3");
        let b4 = document.querySelector(".b4");
        let b5 = document.querySelector(".b5");
        let b6 = document.querySelector(".b6");
        let b7 = document.querySelector(".b7");
        let b8 = document.querySelector(".b8");

        b1.style.backgroundColor = color1;
        b2.style.backgroundColor = color2;
        b3.style.backgroundColor = color3;
        b4.style.backgroundColor = color4;
        b5.style.backgroundColor = color5;
        b6.style.backgroundColor = color6;
        b7.style.backgroundColor = color7;
        b8.style.backgroundColor = color8;
    </script>
    </center>
</body>
</html>

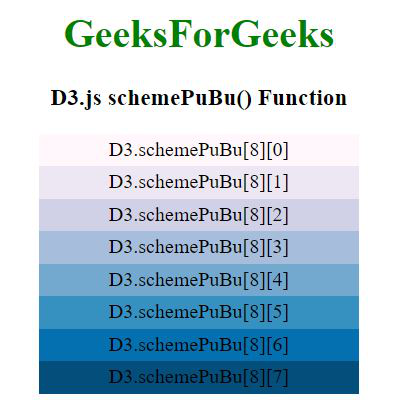

输出：
